AS IS is not good enough!

NEXT Steps:

Match D holes and turn the screws in,
Give one screw a few turns without reaching the end;

Move on to the next screw to give a few turns without tightening to the end;

After a few laps, they should be reasonably tight;

You can then tighten each screw, stop when the resistance becomes obvious.

Please don't over tighten D screws.


Next, turn the frame on its legs,
Put the seat on the frame
Matching C and A

Use your hand to turn the screws in to their shock-mount receivers;

When the screws are a few turns securely into their receivers, turn the chair back to its upside down position, tighten the C A screws, again work from one screw to another until all are tight.

Stand the chair on its legs again, match the E holes to the receivers on the backs,

Hand tighten first, then use a screw driver to finish tightening.
​

You will need a  small wrench to hold D screw nuts
A screw driver with wood screw drill-bit.

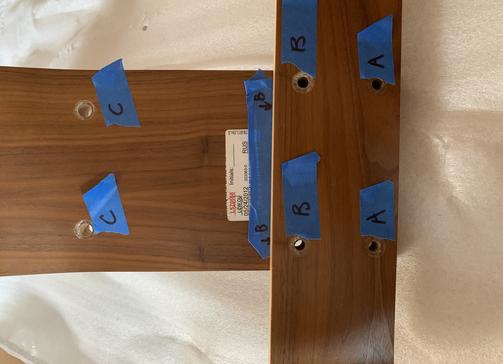

Line up B holes
Insert a B scew in to a B hole
Hand tight the nuts on to both B screws,
The leg should be next to but not covering the blue tape that says Guide Line

​Hold the nut with a wrench, and tighten the B scews with a screw driver.

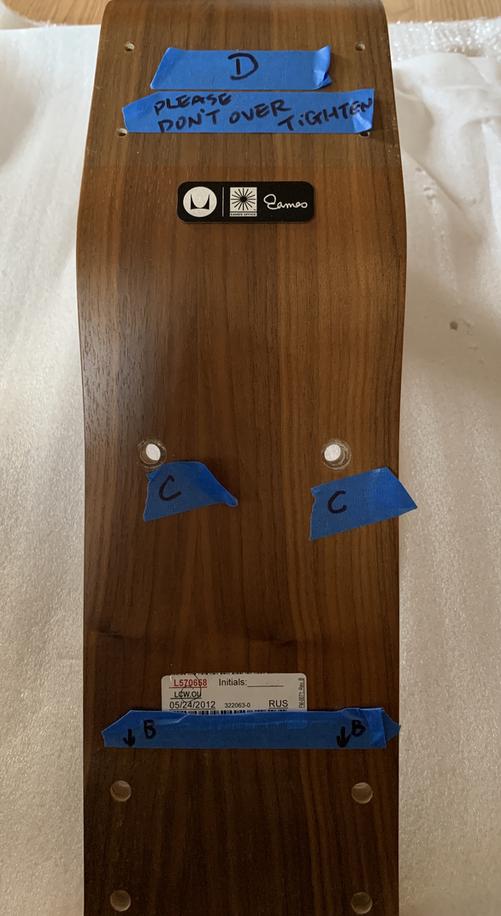

With the center bone on the floor, the letters D C B facing you
